Finish Flange - Masonry Vent

1540-533

MODEL #
FLOOD COVERAGE
N/A

AIR VENTILATION
N/A

VENT SIZE
16"W X 8"H x 3.5"D

ROUGH OPENING
16.25"W X 8.25"H

AVAILABLE COLORS
STAINLESS STEEL ONLY
Application

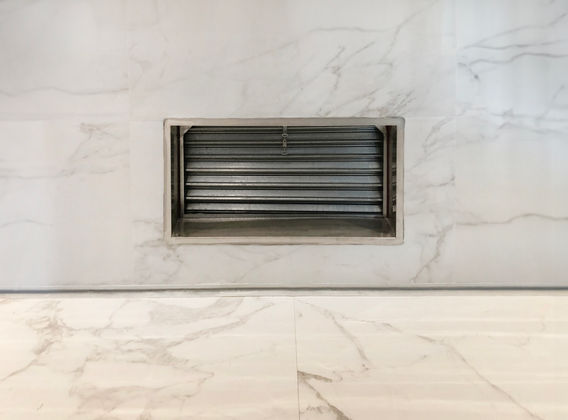

The Trim Flange unit fits into the rough opening to provide a clean finished look on the interior wall.

This model of Trim flange is available for use with standard masonry flood vents but other models are designed for use in Wood Wall applications (4” depth 1540-573 and 9” depth 1540-573-9) which come standard in white.

NOTE: Trim Flange and inner sleeve are required for installation as well as an 8" minimum wall depth.
• CONSTRUCTED OF GALVANIZED STEEL
• UL CERTIFIED
• AVAILABLE UP TO A 2x3 VENT CONFIGURATION
• MADE IN THE U.S.A.
